| Part number: | EMA5T2R |
| Description: | TRANS 2PNP PREBIAS 0.15W EMT5 |
| Manufacturer | ROHM Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 8000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ROHM Semiconductor" |

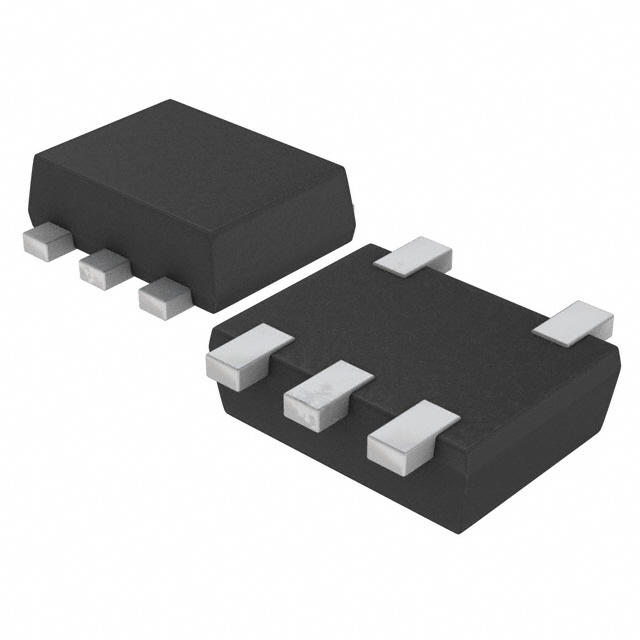

| Package / Case | 6-SMD (5 Leads), Flat Leads |
| Mounting Type | Surface Mount |
| Transistor Type | 2 PNP - Pre-Biased (Dual) |
| Power - Max | 150mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
| Frequency - Transition | 250MHz |
| Resistor - Base (R1) | 2.2kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | EMT5 |
|
