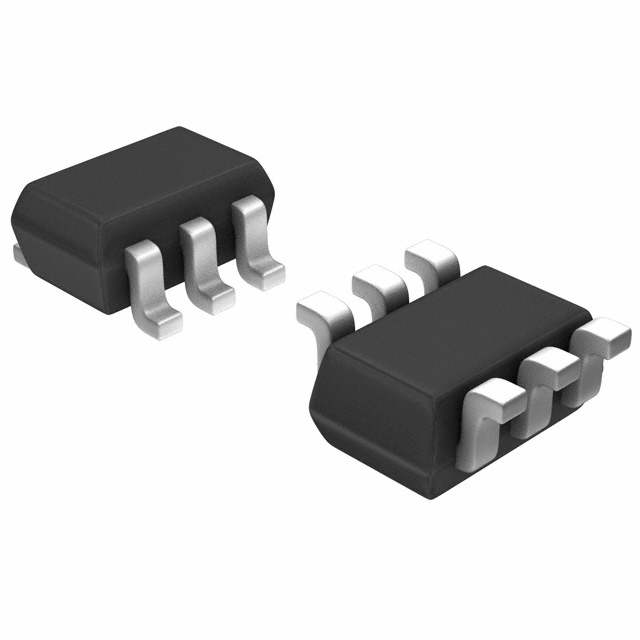

| Part number: | BCR119SH6433XTMA1 |
| Description: | TRANS 2NPN PREBIAS 0.25W SOT363 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 10000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | 6-VSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Power - Max | 250mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 5mA, 5V |
| Frequency - Transition | 150MHz |
| Resistor - Base (R1) | 4.7kOhms |
| Supplier Device Package | PG-SOT363-PO |
|
