| Part number: | IGP20N60H3XKSA1 |
| Description: | IGBT TRENCH FS 600V 40A TO220-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

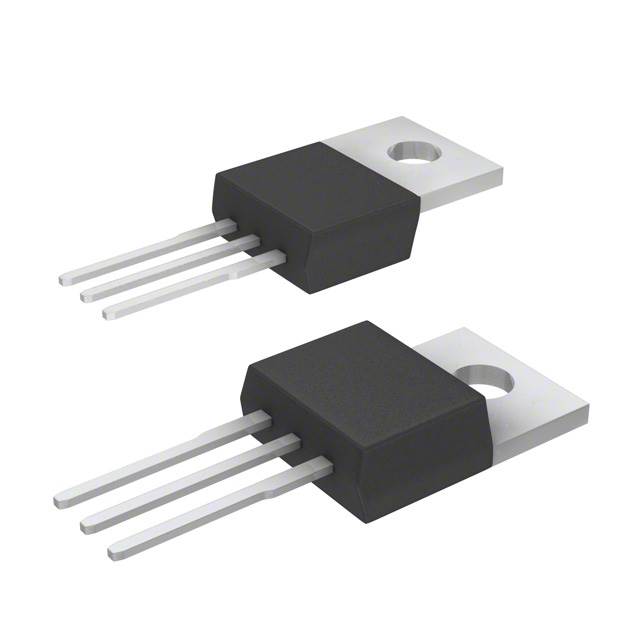

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 20A |
| Supplier Device Package | PG-TO220-3-1 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 16ns/194ns |
| Switching Energy | 690µJ |
| Test Condition | 400V, 20A, 14.6Ohm, 15V |
| Gate Charge | 120 nC |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 80 A |
| Power - Max | 170 W |
|
