| Part number: | IGP30N60H3XKSA1 |
| Description: | IGBT TRENCH FS 600V 60A TO220-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

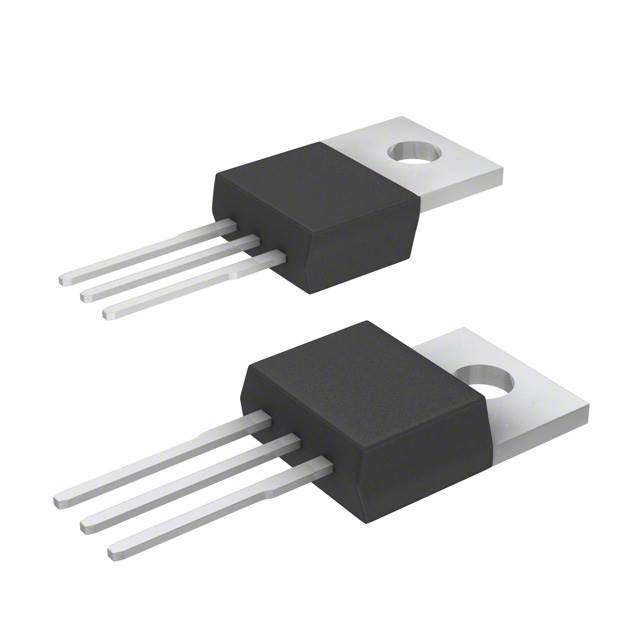

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 30A |
| Supplier Device Package | PG-TO220-3-1 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 18ns/207ns |
| Switching Energy | 1.17mJ |
| Test Condition | 400V, 30A, 10.5Ohm, 15V |
| Gate Charge | 165 nC |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 187 W |
|
