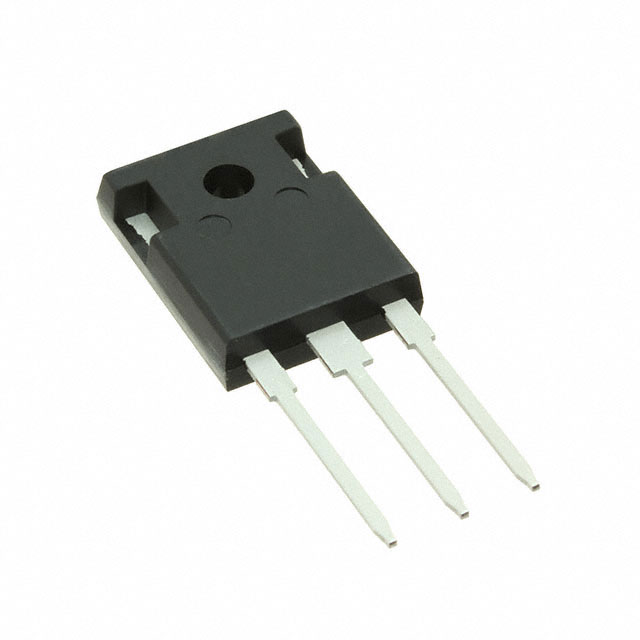

| Part number: | IGW25N120H3FKSA1 |
| Description: | IGBT TRENCH FS 1200V 50A TO247-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 25A |
| Supplier Device Package | PG-TO247-3-1 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 27ns/277ns |
| Switching Energy | 2.65mJ |
| Test Condition | 600V, 25A, 23Ohm, 15V |
| Gate Charge | 115 nC |
| Current - Collector (Ic) (Max) | 50 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 100 A |
| Power - Max | 326 W |
|
