| Part number: | IHW30N120R2 |
| Description: | IGBT 1200V 60A 390W TO247-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 240 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

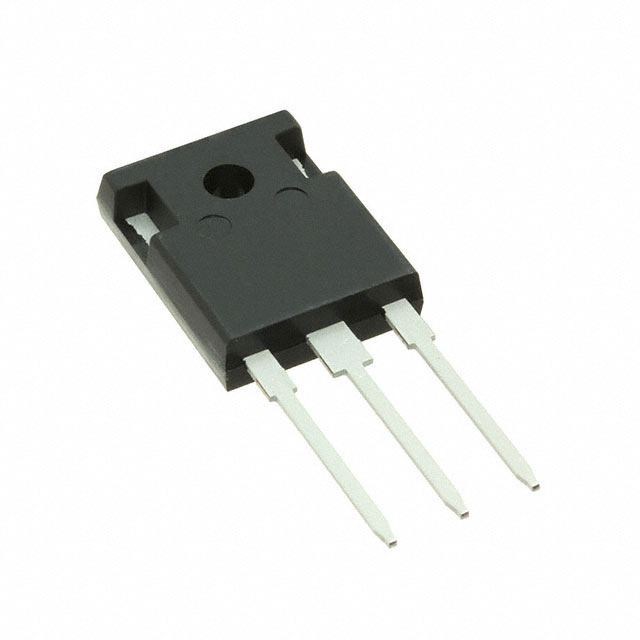

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 30A |
| Supplier Device Package | PG-TO247-3-1 |
| IGBT Type | NPT, Trench Field Stop |
| Td (on/off) @ 25°C | -/792ns |
| Switching Energy | 3.1mJ |
| Test Condition | 600V, 30A, 28Ohm, 15V |
| Gate Charge | 198 nC |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 90 A |
| Power - Max | 390 W |
|
