| Part number: | IKB10N60TATMA1 |
| Description: | IGBT 600V 20A 110W TO263-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

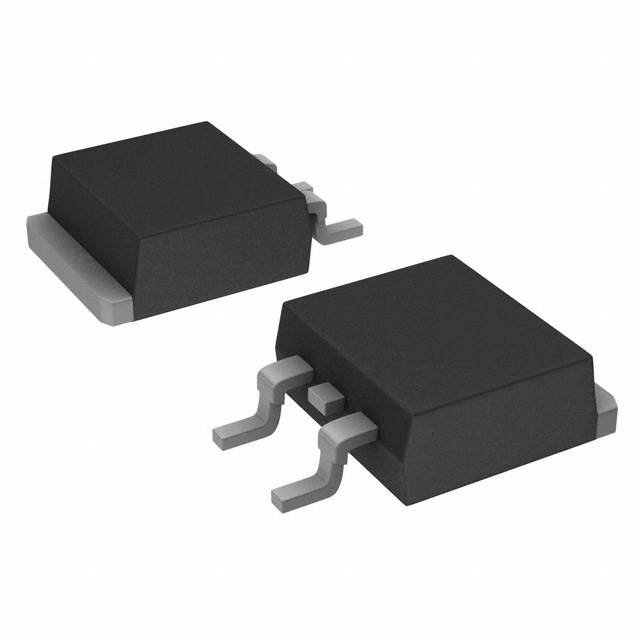

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 115 ns |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 10A |
| Supplier Device Package | PG-TO263-3-2 |
| IGBT Type | NPT, Trench Field Stop |
| Td (on/off) @ 25°C | 12ns/215ns |
| Switching Energy | 430µJ |
| Test Condition | 400V, 10A, 23Ohm, 15V |
| Gate Charge | 62 nC |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 30 A |
| Power - Max | 110 W |
|
