| Part number: | SGP04N60XKSA1 |
| Description: | IGBT 600V 9.4A 50W TO220-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

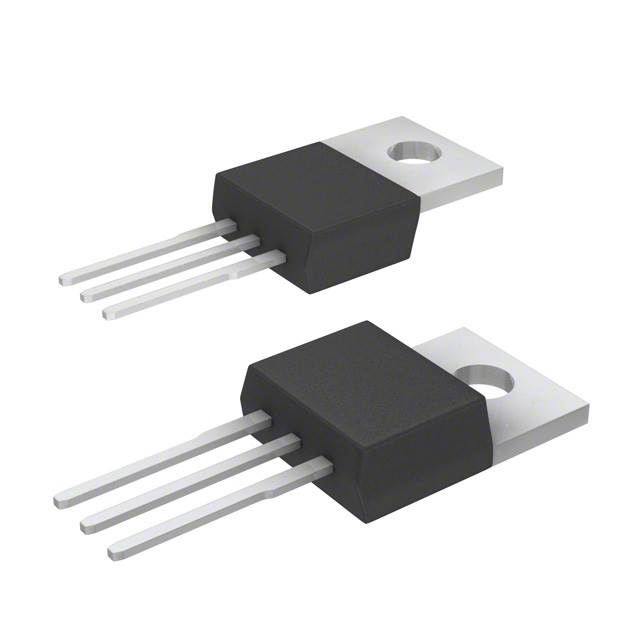

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 4A |
| Supplier Device Package | PG-TO220-3-1 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 22ns/237ns |
| Switching Energy | 131µJ |
| Test Condition | 400V, 4A, 67Ohm, 15V |
| Gate Charge | 24 nC |
| Current - Collector (Ic) (Max) | 9.4 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 19 A |
| Power - Max | 50 W |
|
