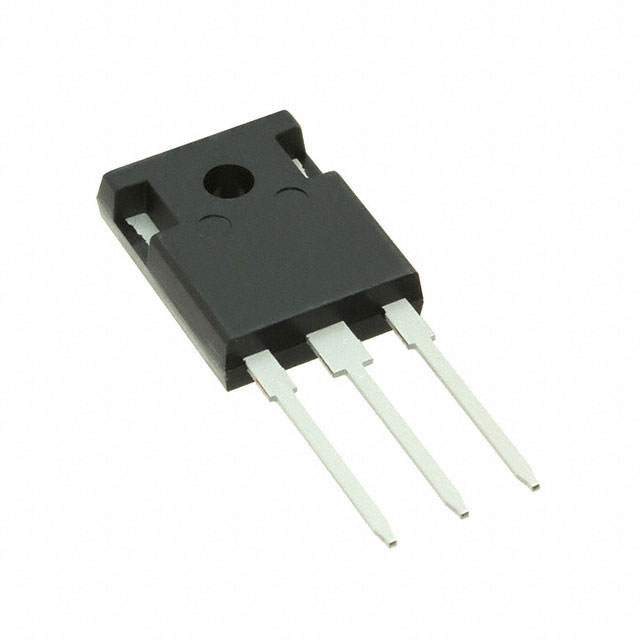

| Part number: | SGW15N120FKSA1 |
| Description: | IGBT 1200V 30A 198W TO247-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 240 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 3.6V @ 15V, 15A |
| Supplier Device Package | PG-TO247-3-1 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 18ns/580ns |
| Switching Energy | 1.9mJ |
| Test Condition | 800V, 15A, 33Ohm, 15V |
| Gate Charge | 130 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 52 A |
| Power - Max | 198 W |
|
