| Part number: | SKP02N120XKSA1 |

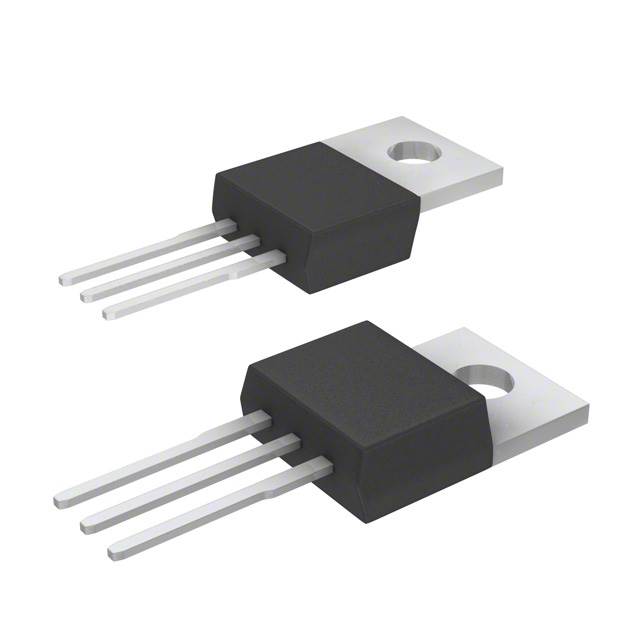

| Description: | IGBT 1200V 6.2A 62W TO220-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 50 ns |
| Vce(on) (Max) @ Vge, Ic | 3.6V @ 15V, 2A |
| Supplier Device Package | PG-TO220-3-1 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 23ns/260ns |
| Switching Energy | 220µJ |
| Test Condition | 800V, 2A, 91Ohm, 15V |
| Gate Charge | 11 nC |
| Current - Collector (Ic) (Max) | 6.2 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 9.6 A |
| Power - Max | 62 W |
|
