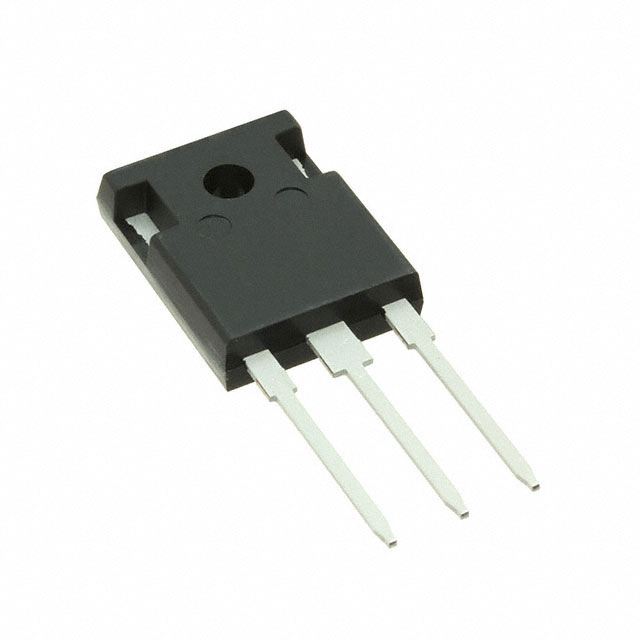

| Part number: | SKW15N60FKSA1 |
| Description: | IGBT 600V 31A 139W TO247-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 240 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 279 ns |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 15A |
| Supplier Device Package | PG-TO247-3-1 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 32ns/234ns |
| Switching Energy | 570µJ |
| Test Condition | 400V, 15A, 21Ohm, 15V |
| Gate Charge | 76 nC |
| Current - Collector (Ic) (Max) | 31 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 62 A |
| Power - Max | 139 W |
|
