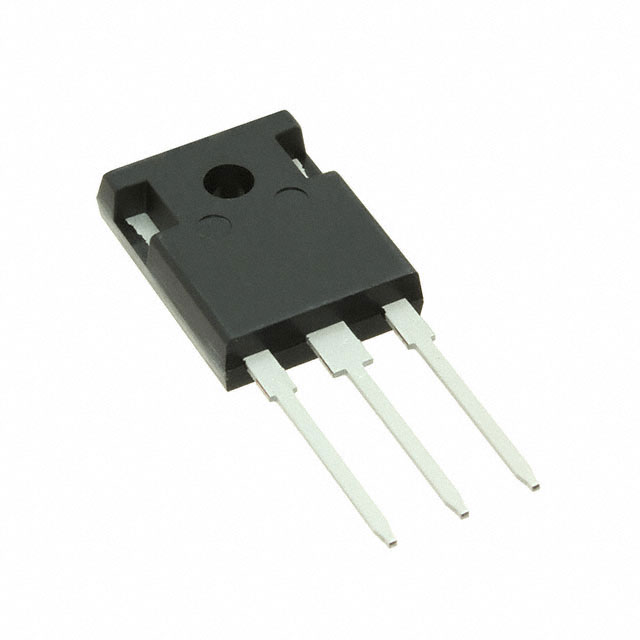

| Part number: | SKW25N120FKSA1 |
| Description: | IGBT 1200V 46A 313W TO247-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 240 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 90 ns |
| Vce(on) (Max) @ Vge, Ic | 3.6V @ 15V, 25A |
| Supplier Device Package | PG-TO247-3-1 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 45ns/730ns |
| Switching Energy | 3.7mJ |
| Test Condition | 800V, 25A, 22Ohm, 15V |
| Gate Charge | 225 nC |
| Current - Collector (Ic) (Max) | 46 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 84 A |
| Power - Max | 313 W |
|
