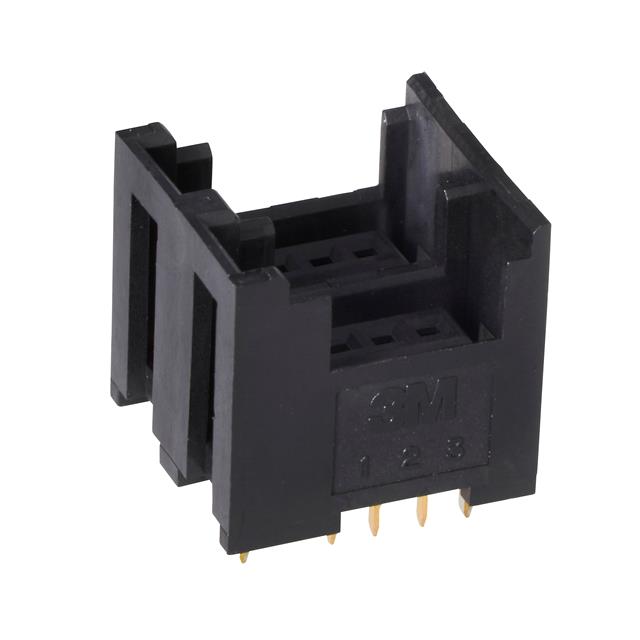

| Part number: | 37206-62A3-003PL |
| Description: | CONN RCPT 6POS 0.079 GOLD PCB |
| Manufacturer | 3M |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "3M" |
| Features | Board Guide |
| Connector Type | Receptacle |
| Voltage Rating | 32V |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Style | Board to Cable/Wire |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Kinked Pin, Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Post | Flash |
| Contact Shape | Square |
| Contact Length - Post | 0.102" (2.60mm) |
| Insulation Height | 0.512" (13.00mm) |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Row Spacing - Mating | 0.256" (6.50mm) |
| Number of Rows | 2 |
|
