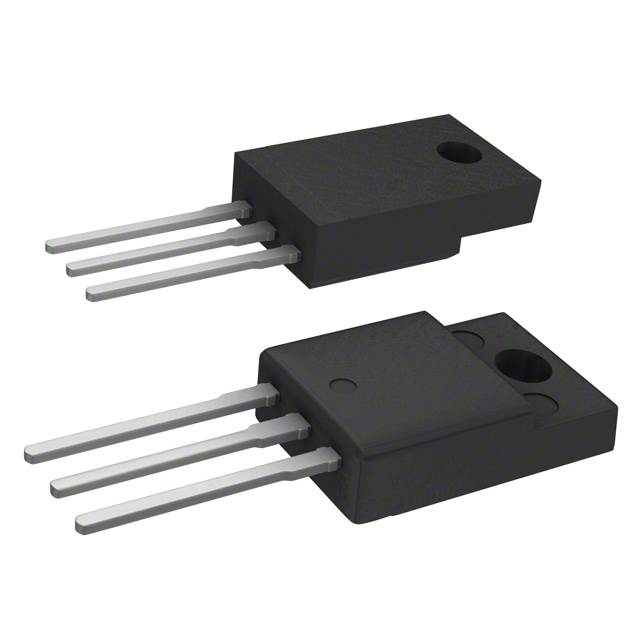

| Part number: | STGP10NB60SFP |
| Description: | IGBT 600V 23A 25W TO220 |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 10A |
| Supplier Device Package | TO-220FP |
| Td (on/off) @ 25°C | 700ns/1.2µs |
| Switching Energy | 600µJ (on), 5mJ (off) |
| Test Condition | 480V, 10A, 1kOhm, 15V |
| Gate Charge | 33 nC |
| Current - Collector (Ic) (Max) | 23 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 80 A |
| Power - Max | 25 W |
|
