| Part number: | STGWS38IH130D |
| Description: | IGBT 1300V 55A 180W TO247 |
| Manufacturer | STMicroelectronics |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "STMicroelectronics" |

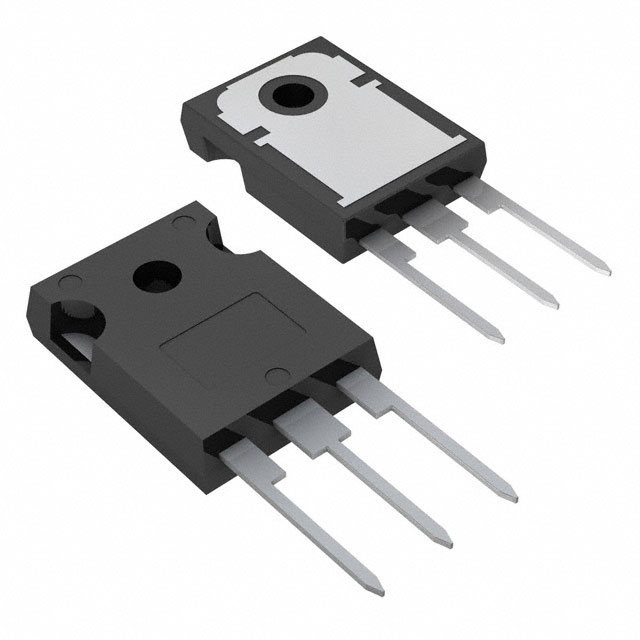

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 20A |
| Supplier Device Package | TO-247 |
| Td (on/off) @ 25°C | -/284ns |
| Switching Energy | 3.4mJ (off) |
| Test Condition | 960V, 20A, 10Ohm, 15V |
| Gate Charge | 127 nC |
| Current - Collector (Ic) (Max) | 55 A |
| Voltage - Collector Emitter Breakdown (Max) | 1300 V |
| Current - Collector Pulsed (Icm) | 125 A |
| Power - Max | 180 W |
|
