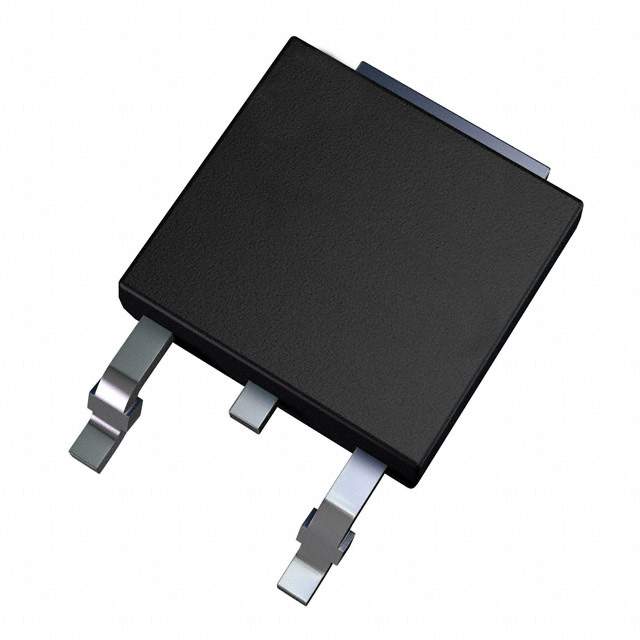

| Part number: | AOD4N60 |
| Description: | MOSFET N-CH 600V 4A TO252 |
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Alpha and Omega Semiconductor, Inc." |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.3Ohm @ 2A, 10V |
| Power Dissipation (Max) | 104W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Supplier Device Package | TO-252 (DPAK) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 14.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 640 pF @ 25 V |
|
