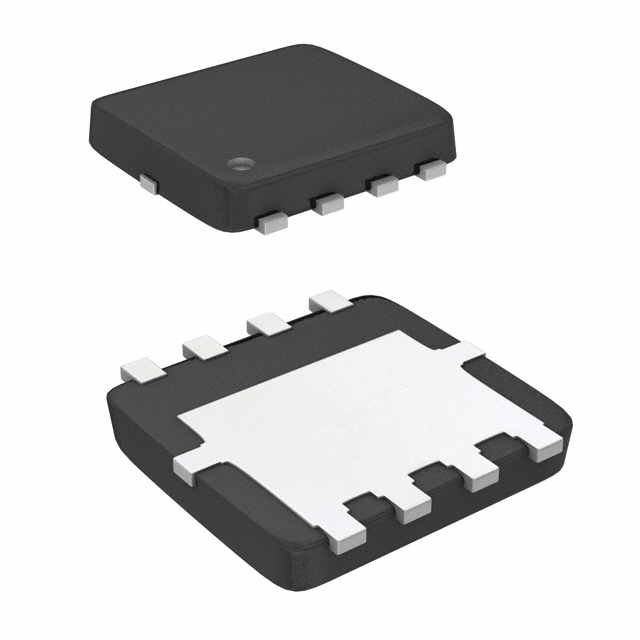

| Part number: | AON7448 |
| Description: | MOSFET N-CH 80V 7.1A/24A 8DFN |
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 5000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Alpha and Omega Semiconductor, Inc." |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 7.1A (Ta), 24A (Tc) |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 10A, 10V |
| Power Dissipation (Max) | 3.1W (Ta), 36W (Tc) |
| Vgs(th) (Max) @ Id | 4.1V @ 250µA |
| Supplier Device Package | 8-DFN-EP (3x3) |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 17.5 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1100 pF @ 40 V |
|
