| Part number: | IRG7PH30K10DPBF |
| Description: | IGBT 1200V 30A 180W TO247AC |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

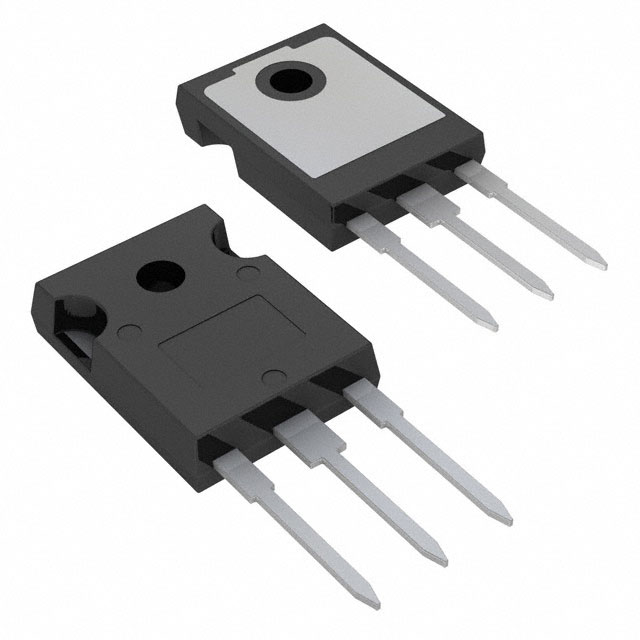

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 140 ns |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 9A |
| Supplier Device Package | TO-247AC |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 14ns/110ns |
| Switching Energy | 530µJ (on), 380µJ (off) |
| Test Condition | 600V, 9A, 22Ohm, 15V |
| Gate Charge | 45 nC |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 27 A |
| Power - Max | 180 W |
|
