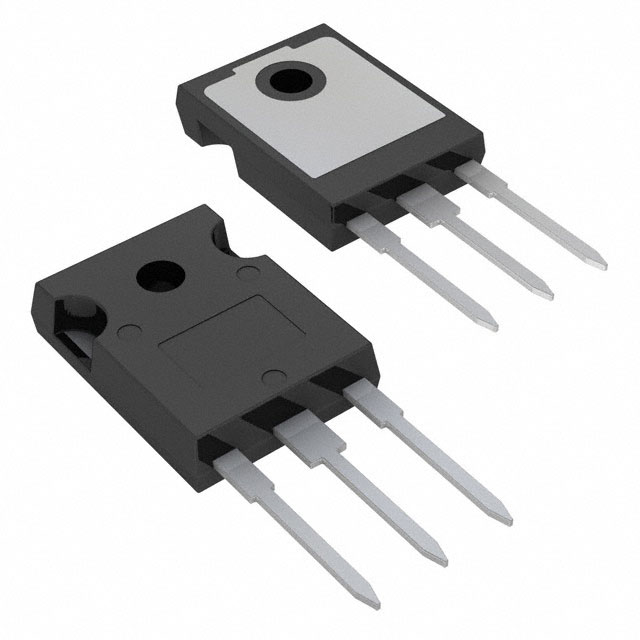

| Part number: | IRG7PH42UD1PBF |
| Description: | IGBT 1200V 85A 313W TO247AC |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 30A |
| Supplier Device Package | TO-247AC |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | -/270ns |
| Switching Energy | 1.21mJ (off) |
| Test Condition | 600V, 30A, 10Ohm, 15V |
| Gate Charge | 180 nC |
| Current - Collector (Ic) (Max) | 85 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 313 W |
|
