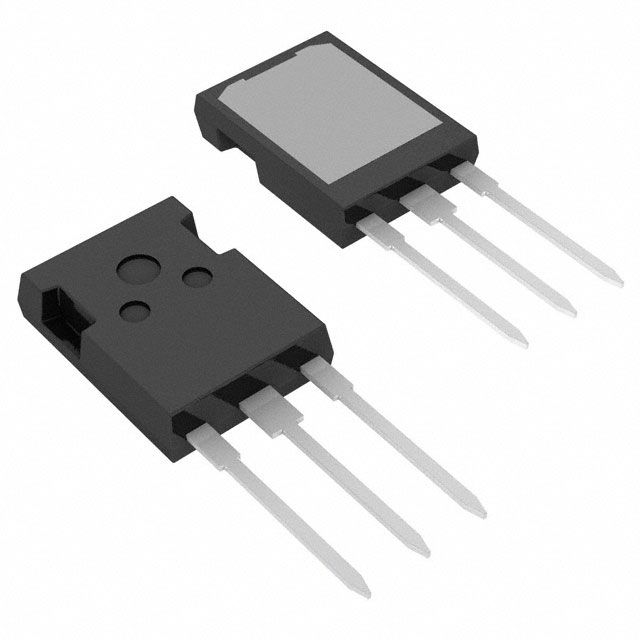

| Part number: | IXGX50N120C3H1 |
| Description: | IGBT 1200V 95A 460W PLUS247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 75 ns |
| Vce(on) (Max) @ Vge, Ic | 4.2V @ 15V, 40A |
| Supplier Device Package | PLUS247™-3 |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 31ns/123ns |
| Switching Energy | 2mJ (on), 630µJ (off) |
| Test Condition | 600V, 40A, 2Ohm, 15V |
| Gate Charge | 196 nC |
| Current - Collector (Ic) (Max) | 95 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 240 A |
| Power - Max | 460 W |
|
