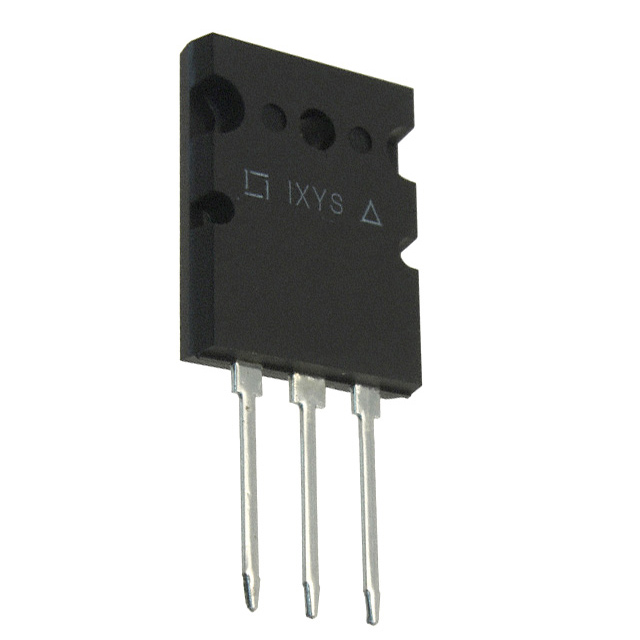

| Part number: | IXSK50N60AU1 |
| Description: | IGBT 600V 75A 300W TO264AA |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Through Hole |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 50 ns |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 50A |
| Supplier Device Package | TO-264AA (IXSK) |
| Td (on/off) @ 25°C | 70ns/200ns |
| Switching Energy | 6mJ (off) |
| Test Condition | 480V, 50A, 2.7Ohm, 15V |
| Gate Charge | 190 nC |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 300 W |
|
