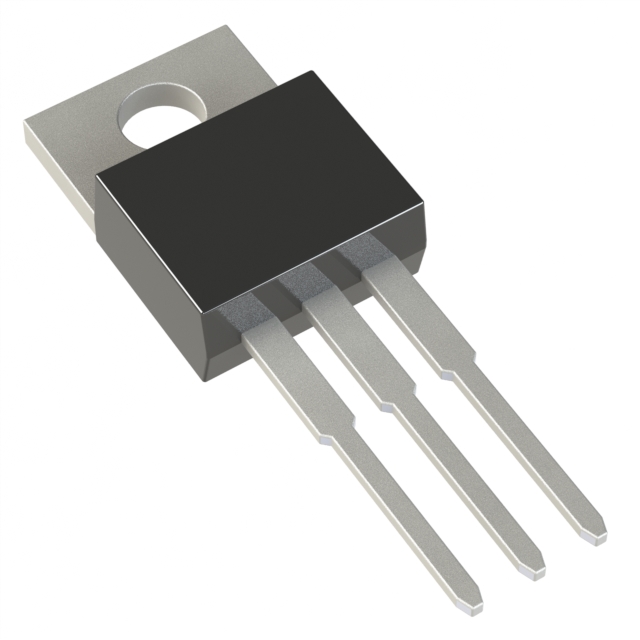

| Part number: | IXGP20N120B3 |
| Description: | IGBT 1200V 36A 180W TO220 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 16A |
| Supplier Device Package | TO-220-3 |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 16ns/150ns |
| Switching Energy | 920µJ (on), 560µJ (off) |
| Test Condition | 600V, 16A, 15Ohm, 15V |
| Gate Charge | 51 nC |
| Current - Collector (Ic) (Max) | 36 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 80 A |
| Power - Max | 180 W |
|
