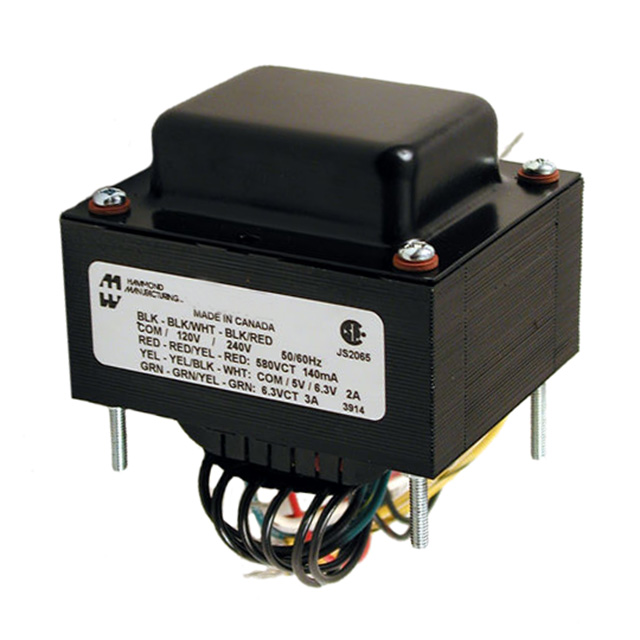

| Part number: | 290KX |
| Description: | PWR XFMR LAMINATED CHAS MT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 96.01mm L x 102.87mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 7.3 lbs (3.3 kg) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Triple |
| Current - Output (Max) | 100mA, 100mA, 2.5A |
| Voltage - Primary | 120V, 240V |
| Height - Seated (Max) | 81.86mm |
| Voltage - Secondary (Full Load) | 330V, 41V, 6.57V |
| Center Tap | Yes |
|
