| Part number: | 1638SEA |

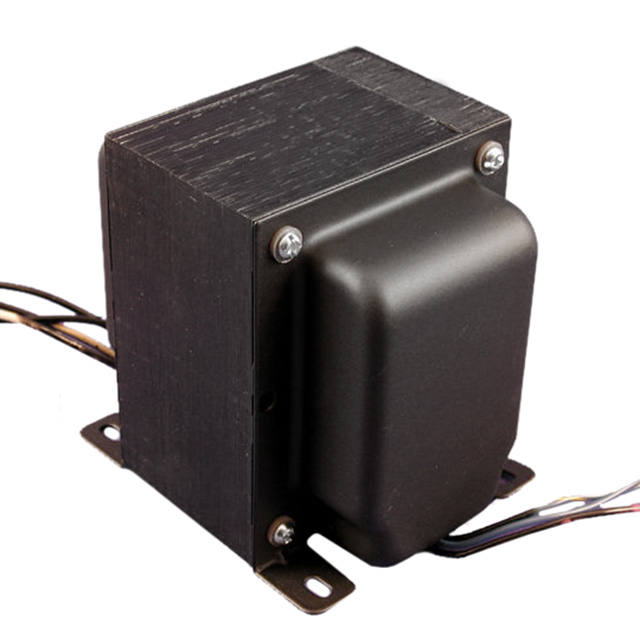

| Description: | XFMR 10K / 4, 8, 16 CHAS MNT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 4.880" L x 3.750" W (123.95mm x 95.25mm) |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Transformer Type | Single Ended Audiophile |
| Insertion Loss | ±1dB |
| Frequency Range | 20Hz ~ 20kHz |
| Voltage - Isolation | 2000Vrms |
| Height - Seated (Max) | 4.560" (115.82mm) |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| Frequency Response | ±1dB |
| Power Level | 30W |
|
