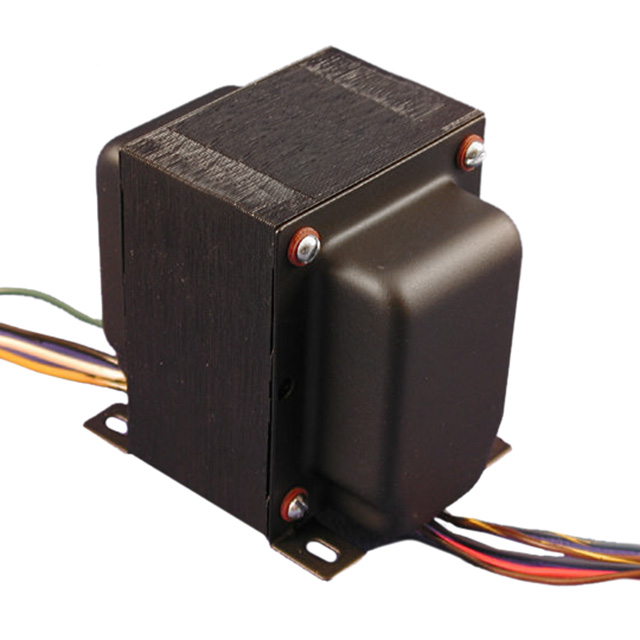

| Part number: | 1650TA |
| Description: | XFMR 1.9KCT / 4, 8, 16 CHAS MNT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 4.500" L x 3.750" W (114.30mm x 95.25mm) |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 30Hz ~ 30kHz |
| Voltage - Isolation | 2000V @ 1 Second |
| Height - Seated (Max) | 4.560" (115.82mm) |
| Impedance - Primary (Ohms) | 1.9kCT |
| Impedance - Secondary (Ohms) | 4, 8, 16 |
| DC Resistance (DCR) - Primary | 22.07Ohm, 24.85Ohm |
| DC Resistance (DCR) - Secondary | 251mOhm, 334mOhm, 359mOhm |
| Frequency Response | ±1dB |
| Power Level | 120W |
|
