| Part number: | 291BX |

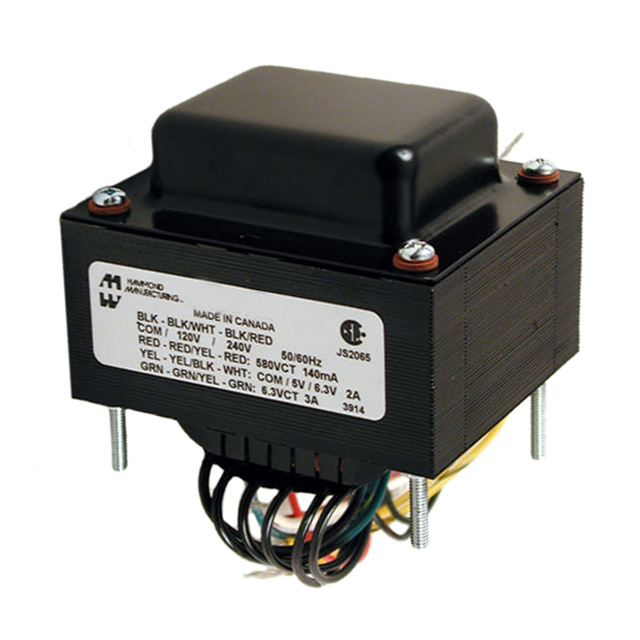

| Description: | PWR XFMR LAMINATED CHAS MT |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 71.45mm L x 103.20mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 5.4 lbs (2.4 kg) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Triple |
| Current - Output (Max) | 138mA, 3A, 3A |
| Voltage - Primary | 120V |
| Height - Seated (Max) | 87.33mm |
| Voltage - Secondary (Full Load) | 660V, 6V, 5V |
| Center Tap | Yes |
|
