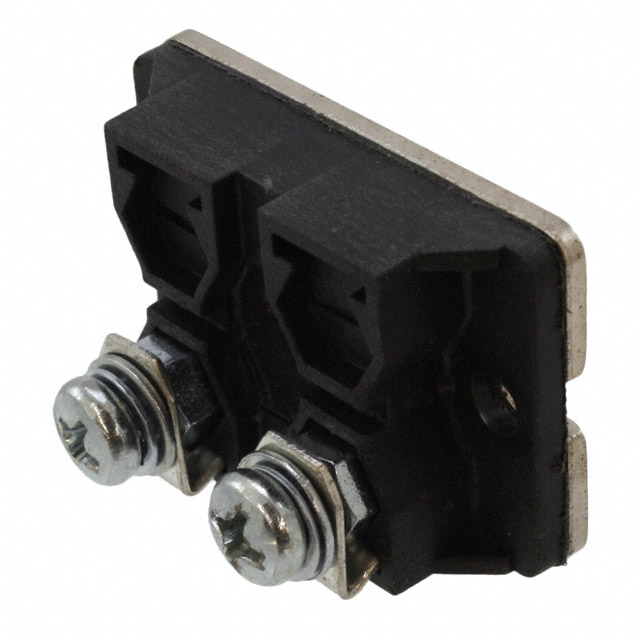

| Part number: | BDS2A1003R3K |
| Description: | RES CHAS MNT 3.3 OHM 10% 100W |
| Manufacturer | TE Connectivity Passive Product |
| Encapsulation | Tray |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity Passive Product" |
| Power (Watts) | 100W |
| Tolerance | ±10% |
| Lead Style | M4 Threaded |
| Features | RF, High Frequency |
| Package / Case | SOT-227-2 |
| Temperature Coefficient | ±150ppm/°C |
| Size / Dimension | 1.488" L x 1.000" W (37.80mm x 25.40mm) |
| Composition | Thick Film |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Feature | Flanges |
| Coating, Housing Type | Epoxy Coated |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Resistance | 3.3 Ohms |
|
