| Part number: | CM1630-04DE |
| Description: | FILTER RC(PI) 100 OHM/8.5PF SMD |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

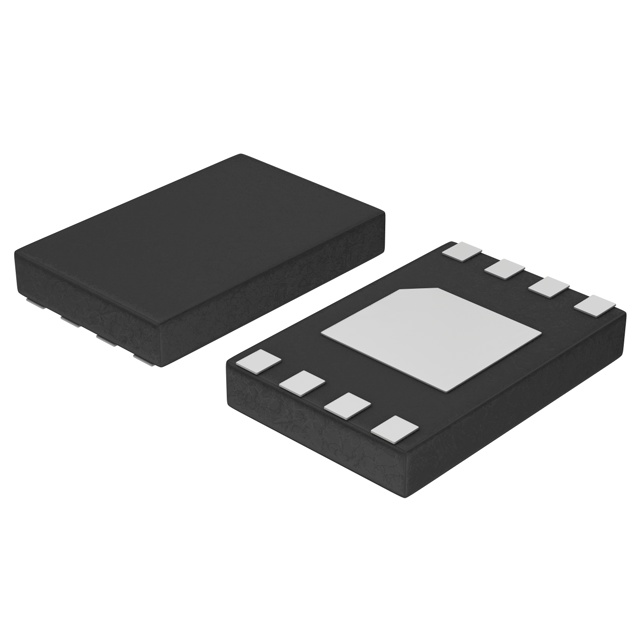

| Package / Case | 8-UFDFN Exposed Pad |
| Size / Dimension | 0.067" L x 0.053" W (1.70mm x 1.35mm) |
| Mounting Type | Surface Mount |
| Type | Low Pass |
| Operating Temperature | -40°C ~ 85°C |
| Values | R = 100Ohms, C = 8.5pF |
| Height | 0.022" (0.55mm) |
| Attenuation Value | 25dB @ 800MHz ~ 6GHz |
| Filter Order | 2nd |
| Applications | Data Lines for Mobile Devices |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | 200MHz (Cutoff) |
| Resistance - Channel (Ohms) | 100 |
| ESD Protection | Yes |
| Number of Channels | 4 |
|
