| Part number: | SG-8003LB-SDC |
| Description: | XTAL OSC PRG XO CMOS 2.5V 100PPM |
| Manufacturer | Epson |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Epson" |

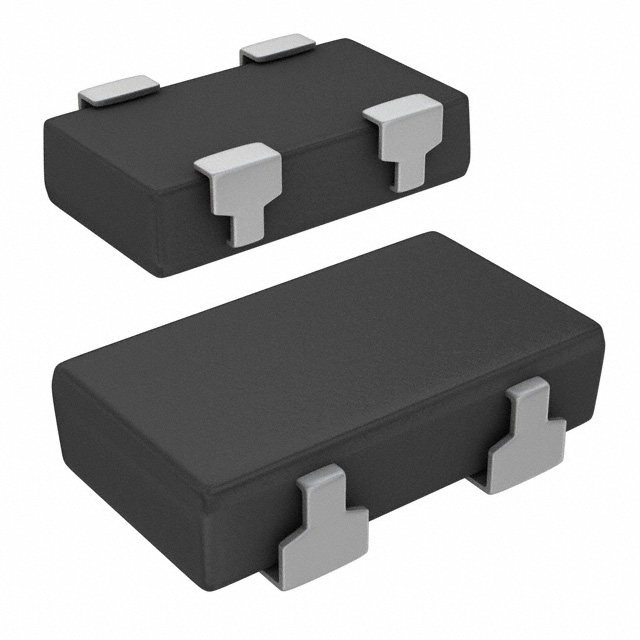

| Package / Case | 4-TESOP (0.110", 2.80mm Width) |
| Size / Dimension | 0.197" L x 0.110" W (5.00mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Function | Standby |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Type | XO (Standard) |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±100ppm |
| Voltage - Supply | 2.5V |
| Current - Supply (Max) | 15mA |
| Height - Seated (Max) | 0.047" (1.19mm) |
| Available Frequency Range | 1 MHz ~ 166 MHz |
| Base Resonator | Crystal |
|
