| Part number: | B3W-9010-R1N |

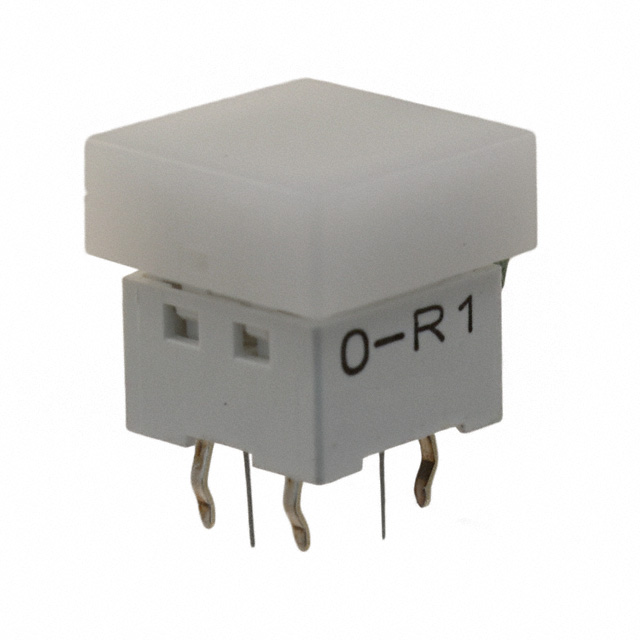

| Description: | SWITCH TACTILE SPST-NO 0.05A 24V |
| Manufacturer | Omron Electronic Components |
| Encapsulation | Box |
| Quantity | 300 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Omron Electronic Components" |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 1.8 VDC |
| Illumination | Illuminated |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Square Button |
| Operating Force | 160gf |
| Outline | 12.00mm x 12.00mm |
| Actuator Height off PCB, Vertical | 10.20mm |
| Actuator Orientation | Top Actuated |
|
