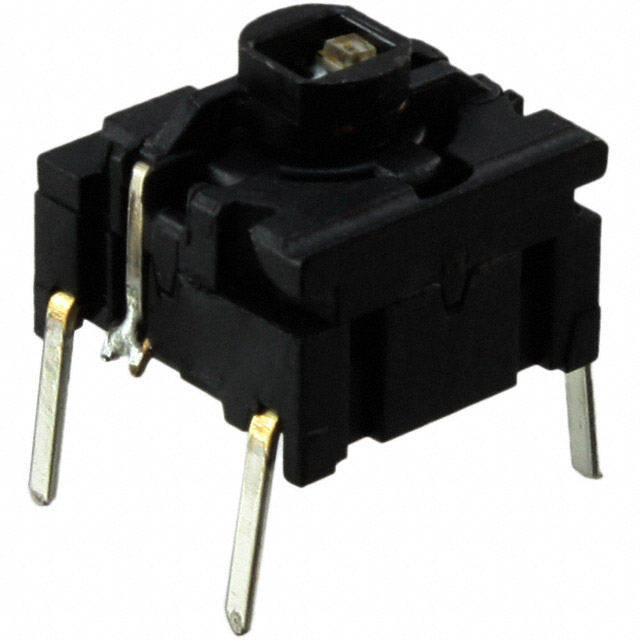

| Part number: | 5GTH93522 |
| Description: | SWITCH TACTILE SPST-NO 0.05A 24V |
| Manufacturer | MEC switches |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "MEC switches" |
| Features | Sealed - Flux Protection |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 160°C |
| Termination Style | PC Pin |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2.2 VDC |
| Illumination | Illuminated |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Plunger for Cap |
| Operating Force | 350gf |
| Outline | 10.10mm x 10.10mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Height off PCB, Vertical | 6.40mm |
| Actuator Orientation | Top Actuated |
|
