| Part number: | 31-5800 |

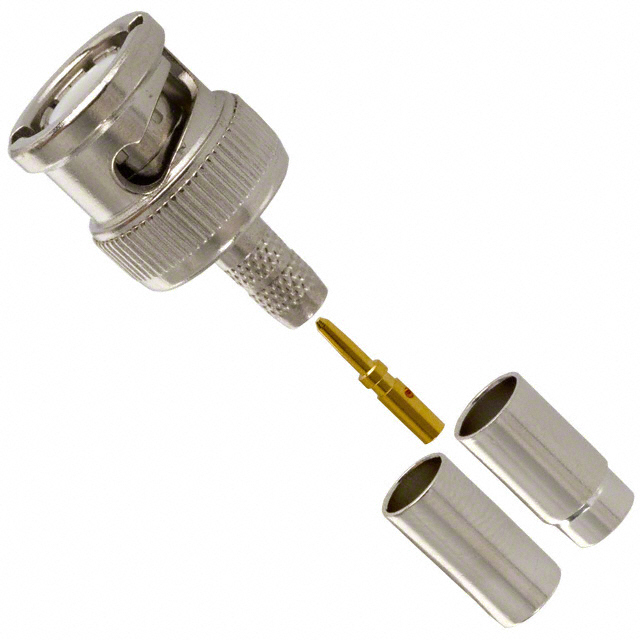

| Description: | CONN BNC PLUG STR 50 OHM CRIMP |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-58 Plenum, 122, Belden 88240, 89907 |
| Operating Temperature | -40°C ~ 85°C |
| Insertion Loss | 0.2dB |
| Fastening Type | Bayonet Lock |
| Includes | 4 pcs - 1 Connector, 1 Contact, 2 Ferrules |
| Connector Style | BNC |
| Dielectric Material | Polymethylpentene (PMP) |
| Body Material | Zinc Die Cast |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Shield Termination | Crimp |
| Center Contact Material | Brass |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Voltage Rating | 500 V |
|
