| Part number: | ALD110808APCL |
| Description: | MOSFET 4N-CH 10.6V 16DIP |
| Manufacturer | Advanced Linear Devices, Inc. |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Advanced Linear Devices, Inc." |

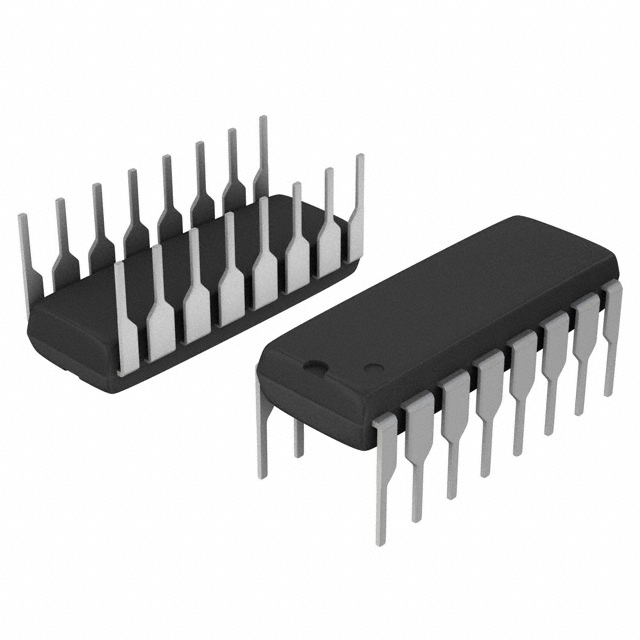

| Package / Case | 16-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Configuration | 4 N-Channel, Matched Pair |
| Operating Temperature | 0°C ~ 70°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 500mW |
| Drain to Source Voltage (Vdss) | 10.6V |
| Current - Continuous Drain (Id) @ 25°C | 12mA, 3mA |
| Input Capacitance (Ciss) (Max) @ Vds | 2.5pF @ 5V |
| Rds On (Max) @ Id, Vgs | 500Ohm @ 4.8V |
| Vgs(th) (Max) @ Id | 810mV @ 1µA |
| Supplier Device Package | 16-PDIP |
|
