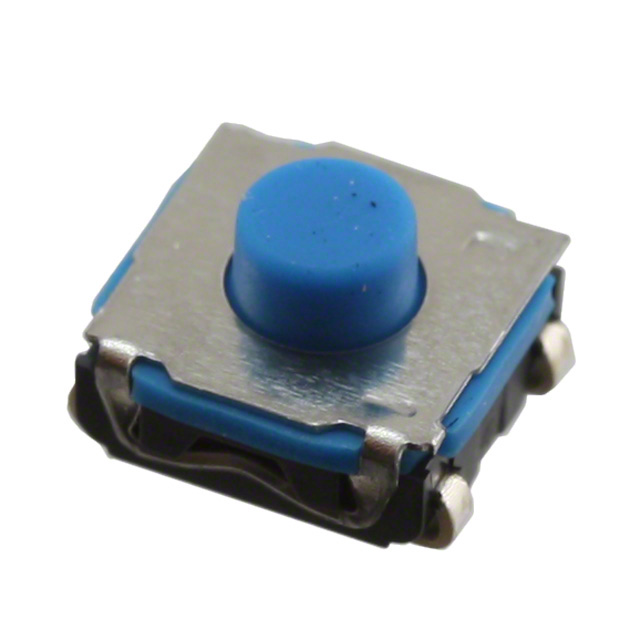

| Part number: | KSC721J LFS |
| Description: | SWITCH TACTILE SPST-NO 0.05A 32V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 32VDC |
| Actuator Type | Standard |
| Operating Force | 225gf |
| Outline | 6.20mm x 6.20mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Orientation | Top Actuated |
|
