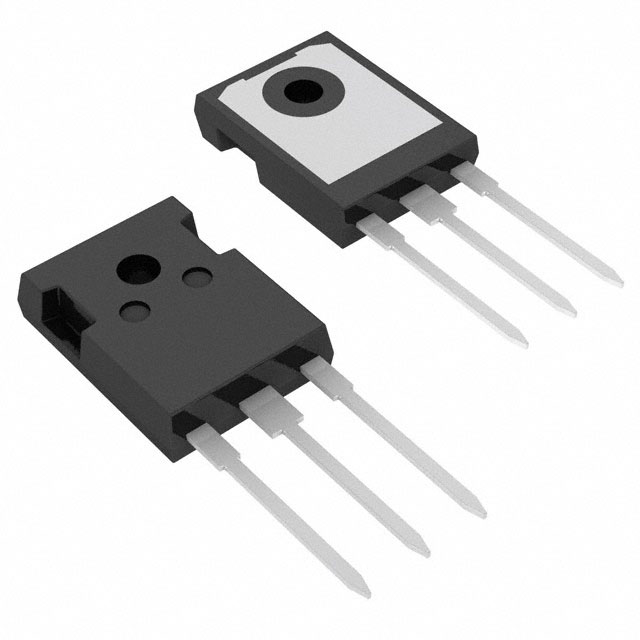

| Part number: | IXGH50N60A |
| Description: | IGBT 600V 75A 250W TO247AD |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Bulk |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 50A |
| Supplier Device Package | TO-247AD |
| Td (on/off) @ 25°C | 50ns/200ns |
| Switching Energy | 4.8mJ (off) |
| Test Condition | 480V, 50A, 2.7Ohm, 15V |
| Gate Charge | 200 nC |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 250 W |
|
