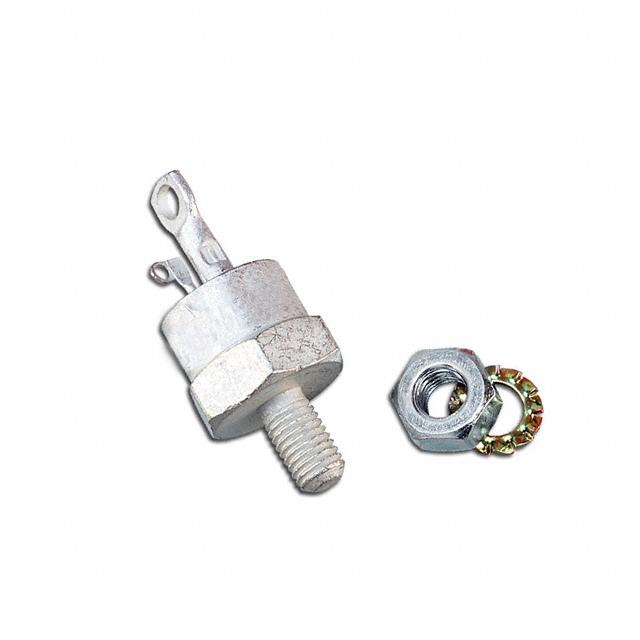

| Part number: | CS35-12IO4 |
| Description: | SCR 1.2KV 120A TO208AC |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-208AC, TO-65-3, Stud |
| Mounting Type | Chassis, Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1200A, 1340A |
| Current - On State (It (AV)) (Max) | 69 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.5 V |
| Current - Off State (Max) | 10 mA |
| Supplier Device Package | TO-208AC (TO-65) |
| Current - On State (It (RMS)) (Max) | 120 A |
| Voltage - Off State | 1.2 kV |
|
