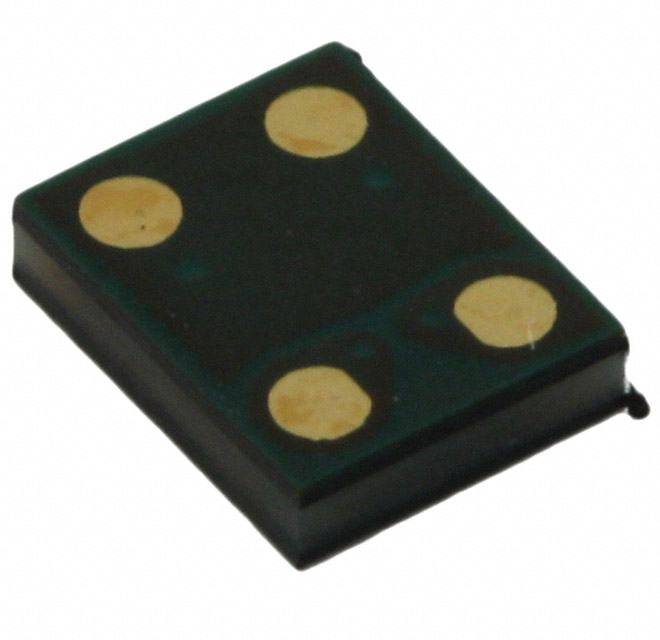

| Part number: | SPU0409HD5H-PB |
| Description: | MIC MEMS ANALOG OMNI -42DB |
| Manufacturer | Knowles |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1200 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Knowles" |
| Output Type | Analog |
| Size / Dimension | 0.148" L x 0.116" W (3.76mm x 2.95mm) |
| Sensitivity | -42dB ±3dB @ 94dB SPL |
| Shape | Rectangular |
| Type | MEMS (Silicon) |
| S/N Ratio | 59dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.035" (0.90mm) |
| Impedance | 100 Ohms |
| Current - Supply | 190 µA |
| Voltage Range | 1.5 V ~ 3.6 V |
| Frequency Range | 100 Hz ~ 100 kHz |
|
