| Part number: | EP502B |

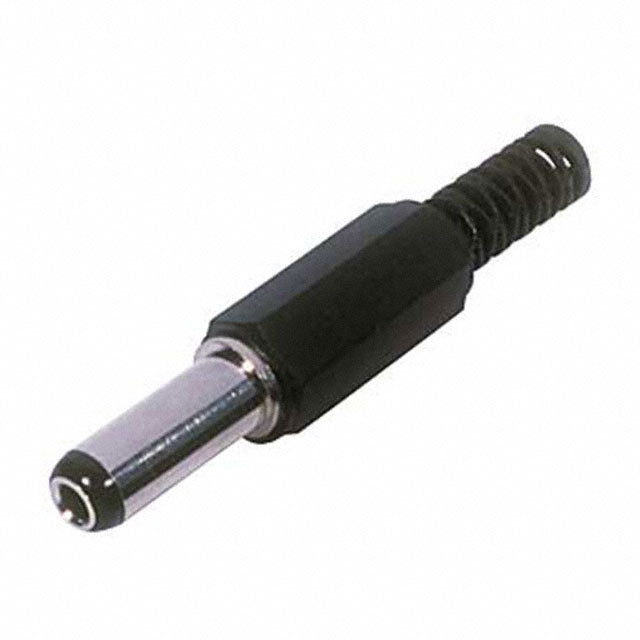

| Description: | CONN PWR PLUG 2.5X5.5MM SOLDER |
| Manufacturer | MPD (Memory Protection Devices) |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "MPD (Memory Protection Devices)" |
| Features | Strain Relief |
| Voltage - Rated | 12VDC |
| Connector Type | Plug |
| Gender | Female |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Termination | Solder |
| Includes | 2 pcs - 1 Connector, 1 Handle |
| Contact Material | Brass |
| Housing Material | Polypropylene (PP) |
| Body Material | Brass |
| Body Color | Silver, Black |
| Contact Material - Plating | Nickel |
| Insulation Color | Black |
| Actual Diameter | 0.098" (2.50mm ID), 0.217" (5.50mm OD) |
| Mating Length/Depth | 0.543" (13.80mm) |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Current Rating (Amps) | 5 A |
|
