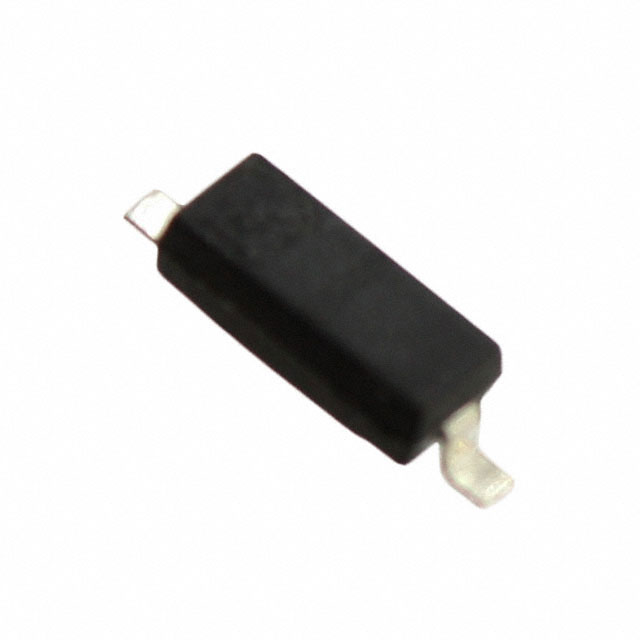

| Part number: | MK24-E-2 |
| Description: | SWITCH REED SPST-NO 300MA 30V |
| Manufacturer | Standex Electronics |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Standex Electronics" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -40°C ~ 130°C |
| Termination Style | Gull Wing |
| Length - Overall | 0.272" (6.91mm) |
| Power - Rated | 3W |
| Height Above Board | 0.071" (1.80mm) |
| Current - Switching | 300mA (AC/DC) |
| Voltage - Switching DC | 30 V |
| Operate Time | 0.2 ms |
| Release Time | 0.15 ms |
| Size - Body | 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) |
| Current - Carry | 500mA (AC/DC) |
| Voltage - Switching AC | 30 V |
| Capacitance | 0.1 pF |
|
