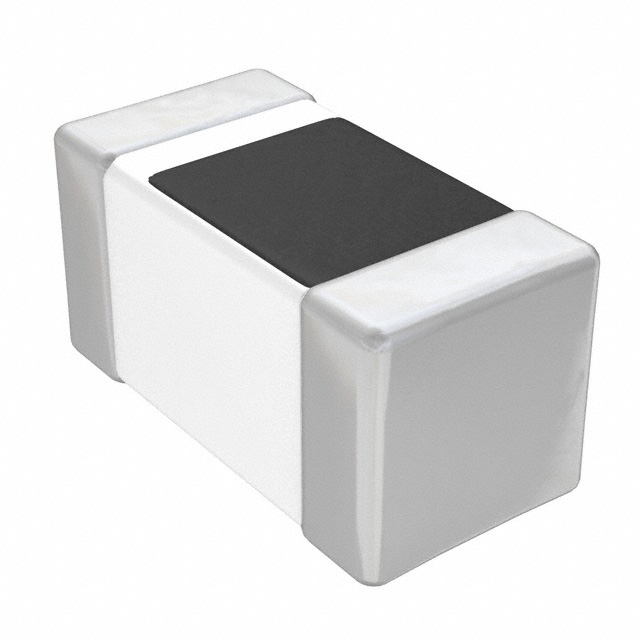

| Part number: | LL1005-FH8N2K=P3 |
| Description: | FIXED IND 8.2NH 300MA 390 MOHM |
| Manufacturer | Toko America Inc. |
| Encapsulation | Cut Tape (CT) |
| Quantity | 10000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Toko America Inc." |
| Tolerance | ±10% |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -40°C ~ 100°C |
| DC Resistance (DCR) | 390mOhm Max |
| Q @ Freq | 12 @ 100MHz |
| Frequency - Self Resonant | 4.1GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0402 (1005 Metric) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Inductance | 8.2 nH |
| Current Rating (Amps) | 300 mA |
|
