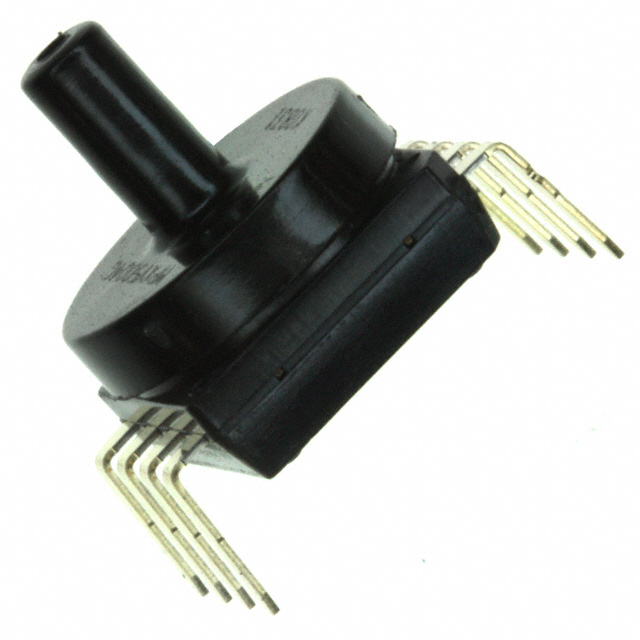

| Part number: | MPVZ5150GC7U |
| Description: | SENSOR 21.76PSIG 0.13" 4.7V 8DIP |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |
| Features | Temperature Compensated |
| Package / Case | 8-DIP (0.550", 13.97mm), Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.2 V ~ 4.7 V |
| Operating Pressure | 21.76PSI (150kPa) |
| Pressure Type | Vented Gauge |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.13" (3.17mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbless |
| Maximum Pressure | 58.02PSI (400kPa) |
|
