| Part number: | 3050196 |

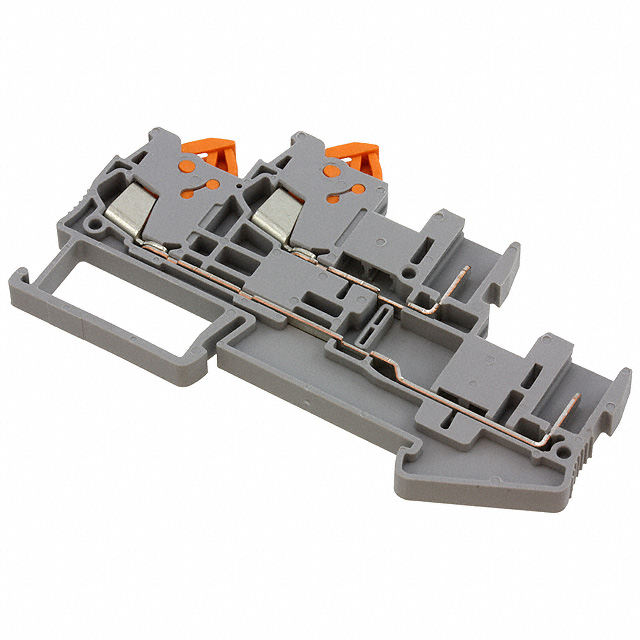

| Description: | TERM BLK PLUG 4POS 5.2MM GRAY |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Mounting Type | DIN Rail |
| Length | 3.457" (87.80mm) |
| Type | Plug Connection |
| Termination Style | Plug Receptacles, IDC |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Terminal - Width | 5.2mm |
| Wire Gauge or Range - AWG | 16-24 AWG |
| Wire Gauge or Range - mm² | 0.25-1.5mm² |
| Height (Max) | 2.260" (57.40mm) |
| Housing Color | Gray |
| Current - UL | 10 A |
| Current - IEC | 17.5 A |
| Voltage - IEC | 500 V |
| Voltage - UL | 600 V |
| Number of Positions | 4 |
|
