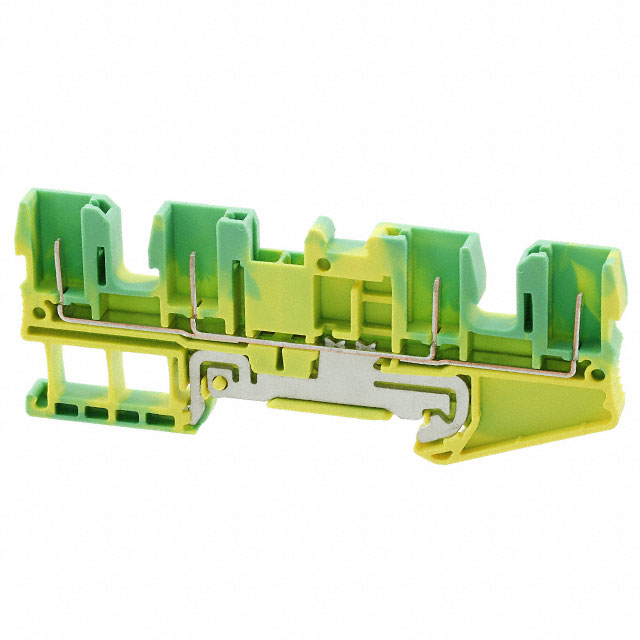

| Part number: | 3042162 |
| Description: | TERM BLK PLUG 4POS 5.2MM GRN YLW |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Mounting Type | DIN Rail |
| Length | 3.524" (89.50mm) |
| Type | Plug Connection |
| Termination Style | Plug Receptacles |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 5.2mm |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Height (Max) | 1.732" (44.00mm) |
| Housing Color | Green, Yellow |
| Stripping Length | 10mm |
| Number of Positions | 4 |
|
