| Part number: | 1836118 |

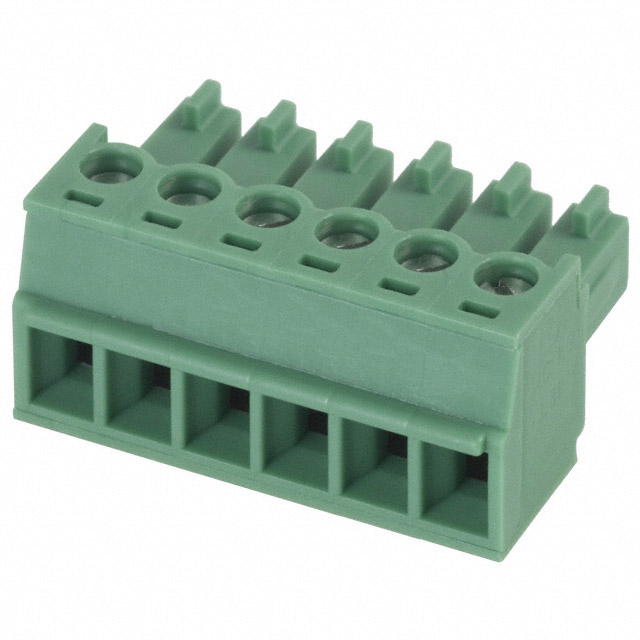

| Description: | TERM BLOCK PLUG 6POS STR 5.08MM |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Pitch | 0.200" (5.08mm) |
| Screw Size | M2 |
| Type | Plug, Female Sockets |
| Termination Style | Screw - Rising Cage Clamp |
| Material Flammability Rating | UL94 V-0 |
| Current - IEC | 8A |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.14-1.5mm² |
| Positions Per Level | 6 |
| Plug Wire Entry | 180° |
| Housing Material | Polyamide (PA), Nylon |
| Torque - Screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Contact Mating Finish | Tin |
| Wire Strip Length | 7mm |
| Insulation Height | 0.437" (11.10mm) |
| Current - UL | 8 A |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
|
