| Part number: | CD16RM0AK |

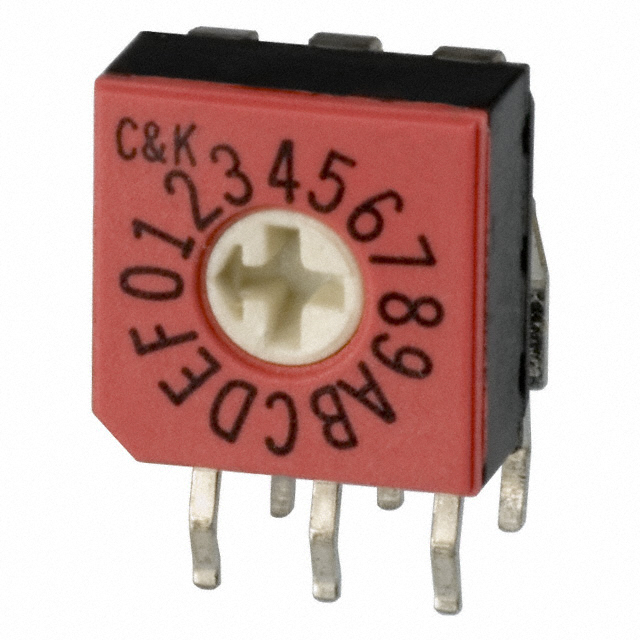

| Description: | SWITCH ROTARY DIP HEX 0.4VA 20V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Bag |
| Quantity | 35 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Features | Process Sealed |
| Contact Finish | Gold |
| Voltage Rating | 20VAC/DC |
| Current Rating (Amps) | 0.4VA |
| Mounting Type | Through Hole, Right Angle |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | Hexadecimal |
| Operating Temperature | -25°C ~ 85°C |
| Termination Style | PC Pin |
| Actuator Type | Rotary for Tool |
| Height Above Board | 0.340" (8.64mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Copper Alloy |
| Number of Positions | 16 |
|
