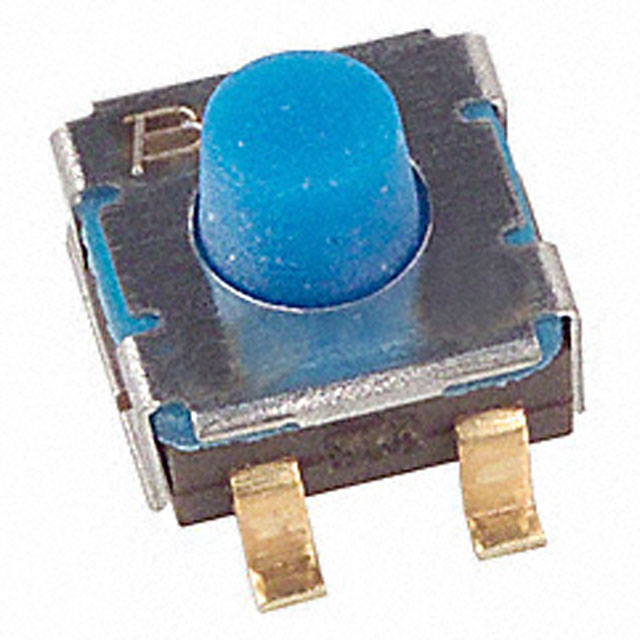

| Part number: | 7914G-1-032 |
| Description: | SWITCH TACTILE SPST-NO 0.1A 16V |
| Manufacturer | J.W. Miller / Bourns |
| Encapsulation | Tube |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "J.W. Miller / Bourns" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -55°C ~ 125°C |
| Termination Style | Gull Wing |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.1A @ 16VAC/DC |
| Actuator Type | Standard |
| Operating Force | 300gf |
| Outline | 5.00mm x 5.00mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Height off PCB, Vertical | 3.43mm |
| Actuator Orientation | Top Actuated |
|
