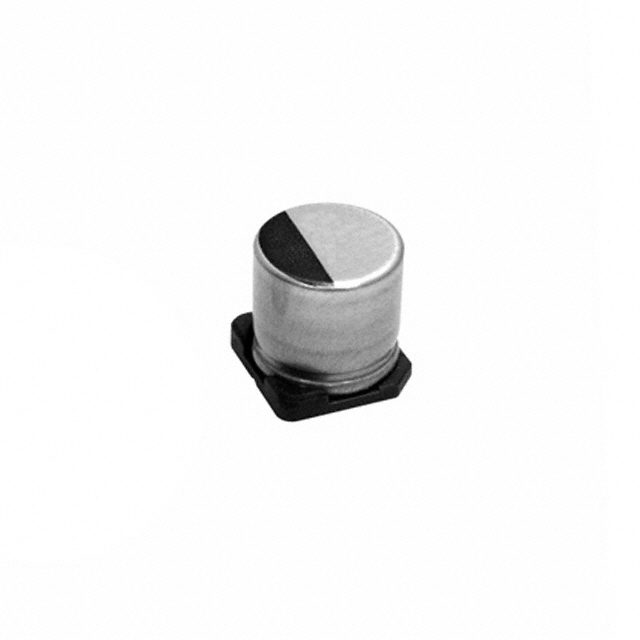

| Part number: | PCF1C181MCL4GS |
| Description: | CAP ALUM POLY 180UF 20% 16V SMD |
| Manufacturer | Nichicon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Capacitance | 180 µF |
| Voltage - Rated | 16 V |
| Ripple Current @ High Frequency | 4.4 A @ 100 kHz |
|
