| Part number: | 3060157 |

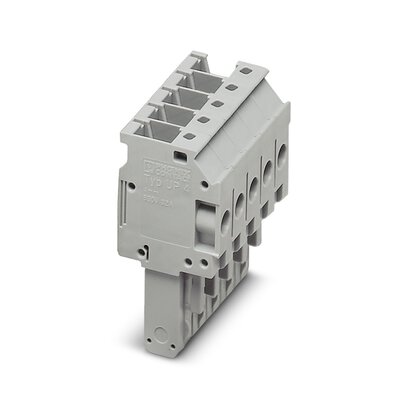

| Description: | TERM BLOCK PLUG 5POS STR |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Screw Size | M3 |
| Type | Plug, Female Sockets |
| Termination Style | Screw |
| Material Flammability Rating | UL94 V-0 |
| Current - IEC | 32A |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Wire Gauge or Range - mm² | 0.2-6mm² |
| Positions Per Level | 5 |
| Plug Wire Entry | 180° |
| Housing Material | Polyamide (PA), Nylon |
| Torque - Screw | 0.60-0.80 Nm (5.3-7.1 Lb-In) |
| Wire Strip Length | 9mm |
| Insulation Height | 1.622" (41.20mm) |
| Current - UL | 30 A |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
|
