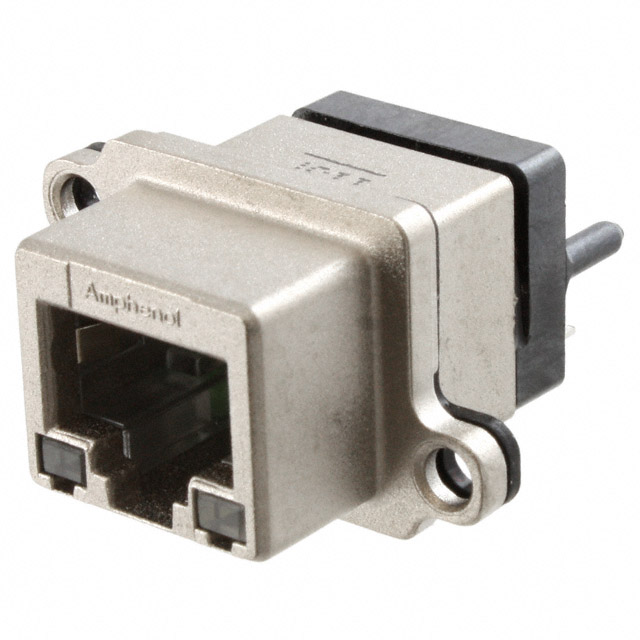

| Part number: | MRJ-5481-01 |
| Description: | CONN MOD JACK 8P8C VERT UNSHLD |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Encapsulation | Tray |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol ICC (Commercial Products)" |
| Features | Board Guide |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Panel Mount, Flange (2 Hole); Through Hole |
| Shielding | Unshielded |
| Orientation | Vertical |
| Operating Temperature | -40°C ~ 105°C |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| LED Color | Green - Yellow |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Tab Direction | User Selectable |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Material | Phosphor Bronze |
| Housing Material | Polycarbonate (PC) |
| Number of Ports | 1 |
| Number of Rows | 1 |
|
