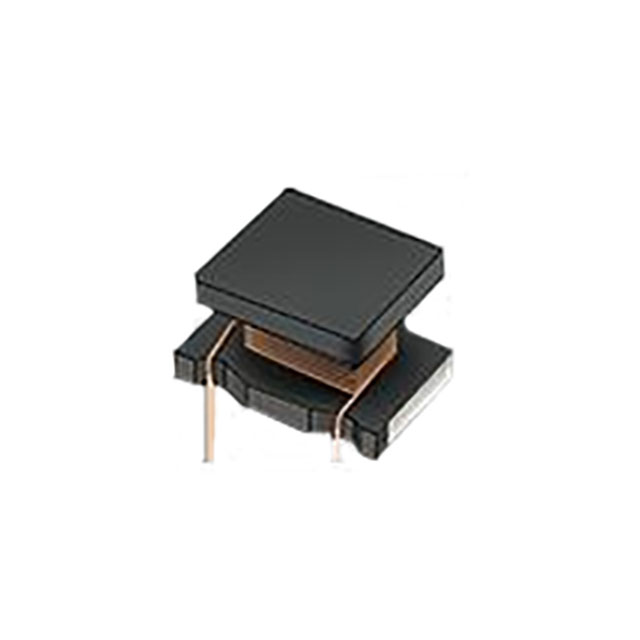

| Part number: | LQH32CH1R0M33L |
| Description: | FIXED IND 1UH 1A 60 MOHM SMD |
| Manufacturer | TOKO / Murata |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKO / Murata" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 85°C |
| DC Resistance (DCR) | 60mOhm |
| Frequency - Self Resonant | 100MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 1 MHz |
| Supplier Device Package | 1210 (3225 Metric) |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Inductance | 1 µH |
| Current Rating (Amps) | 1 A |
|
